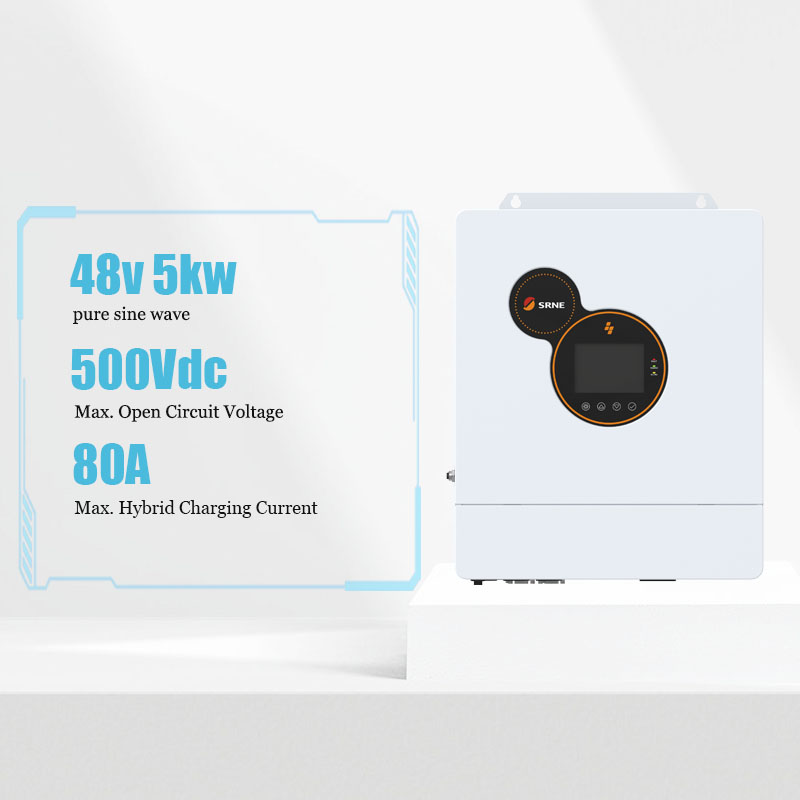

SRNE HYP4850S100-H 48v 5kw Built-in MPPT Hybrid Parallel Inverter

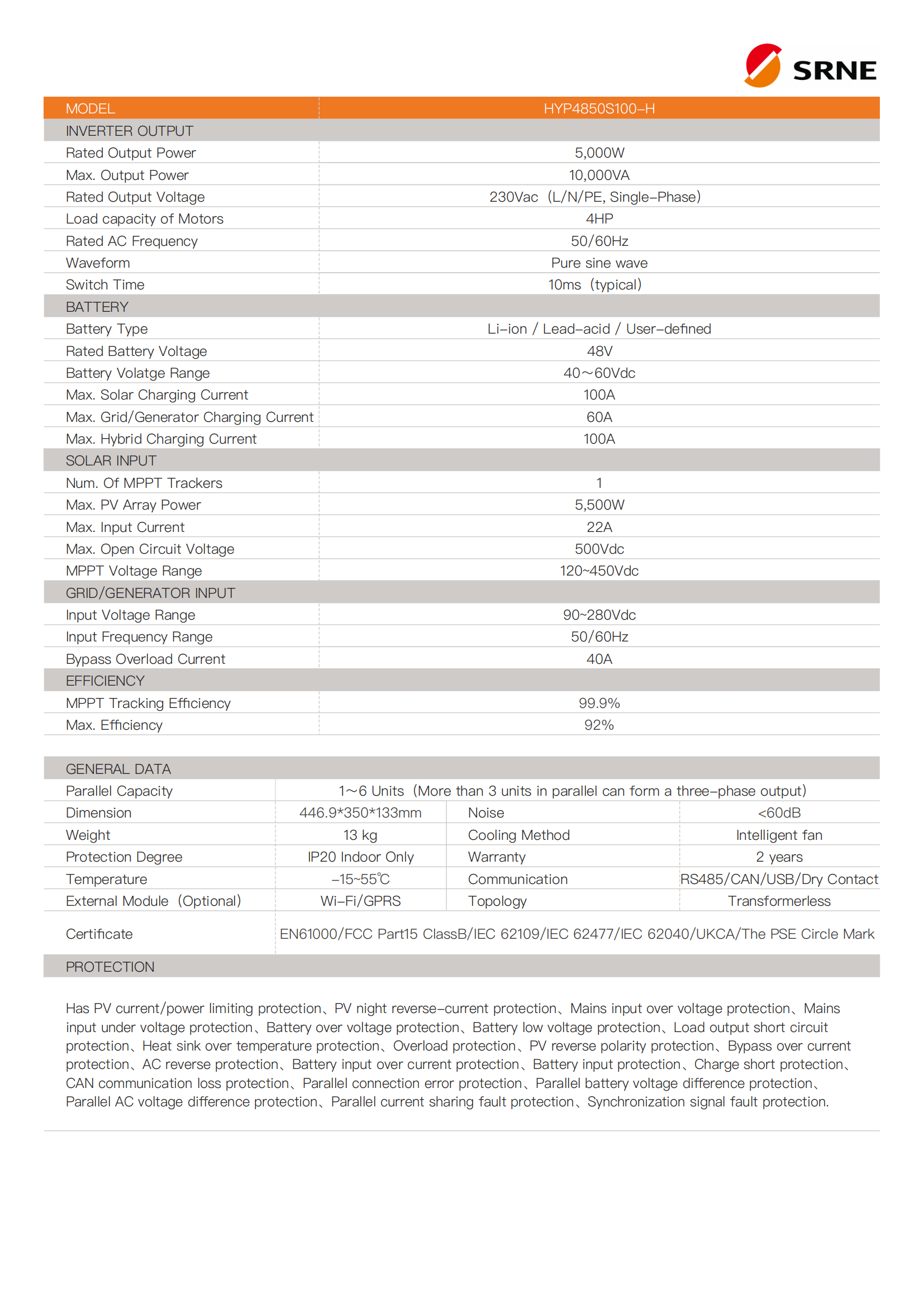

Rated Output Power: 5000w Max. Output Power: 10,000VA Rated Battery Voltage: 48V Max. Open Circuit Voltage: 500Vdc
Product Details
Pure Sine Wave 5kw Hybrid Inverter
HYP series are hybrid solar energy storage inverters, which are controlled by DSP and characterized by high response speed, high reliability, and high industrialization standards through an advanced control algorithm. It is suitable for solar energy demand in many scenarios.
The solar charging module uses the latest optimized MPPT technology with an efficiency of up to 99.9%. It can quickly track the maximum power point of the photovoltaic array in any environment and obtain the maximum energy of the solar panel in real-time.

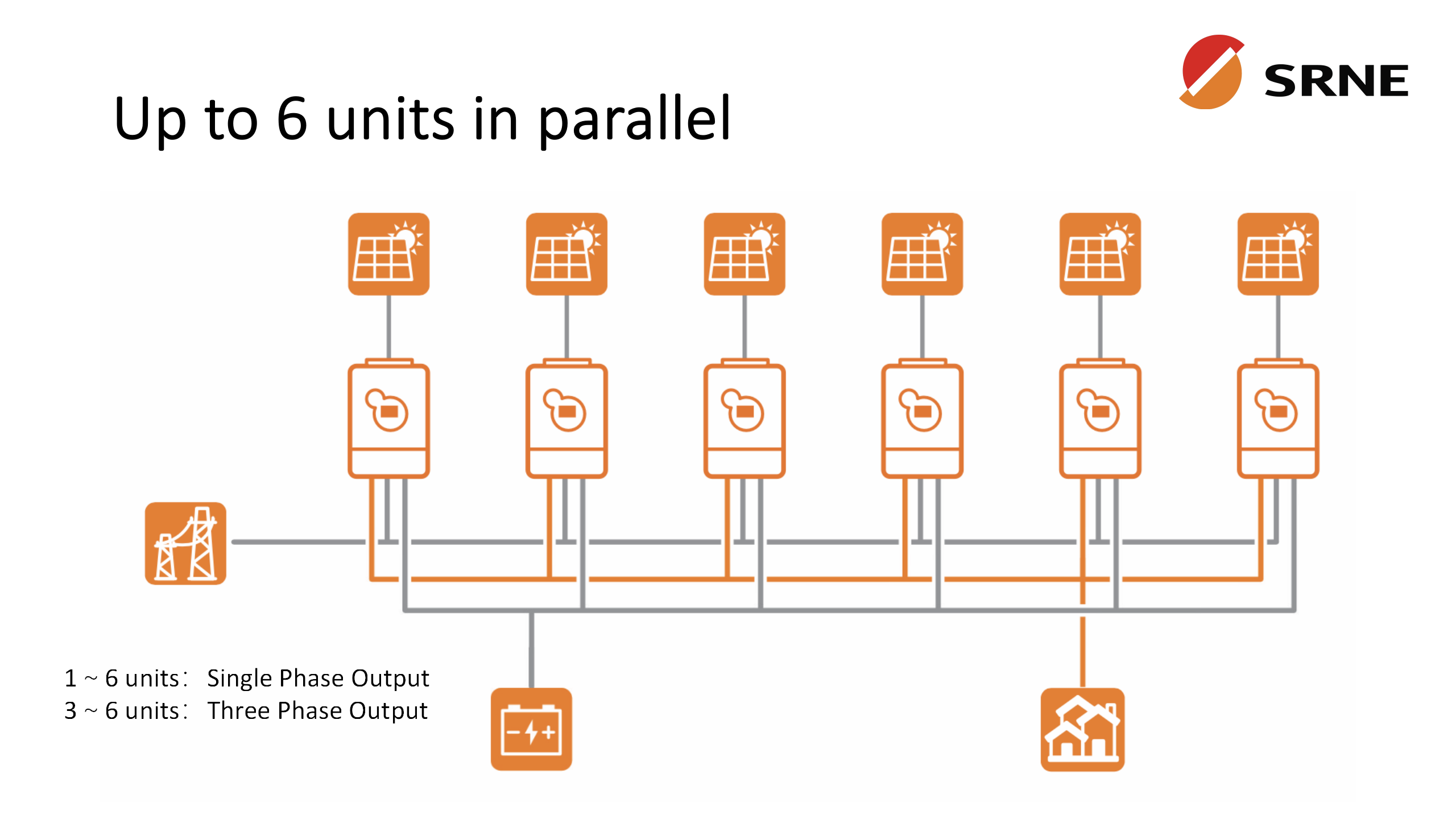

Supports up to 6 devices in parallel
The 5KW Solar Inverter Charger can connect up to 6 devices simultaneously. This configuration provides up to 30kw of total power output for a variety of applications including residential, office, commercial and industrial. This solar inverter charger is designed to be reliable and efficient and can be easily expanded.

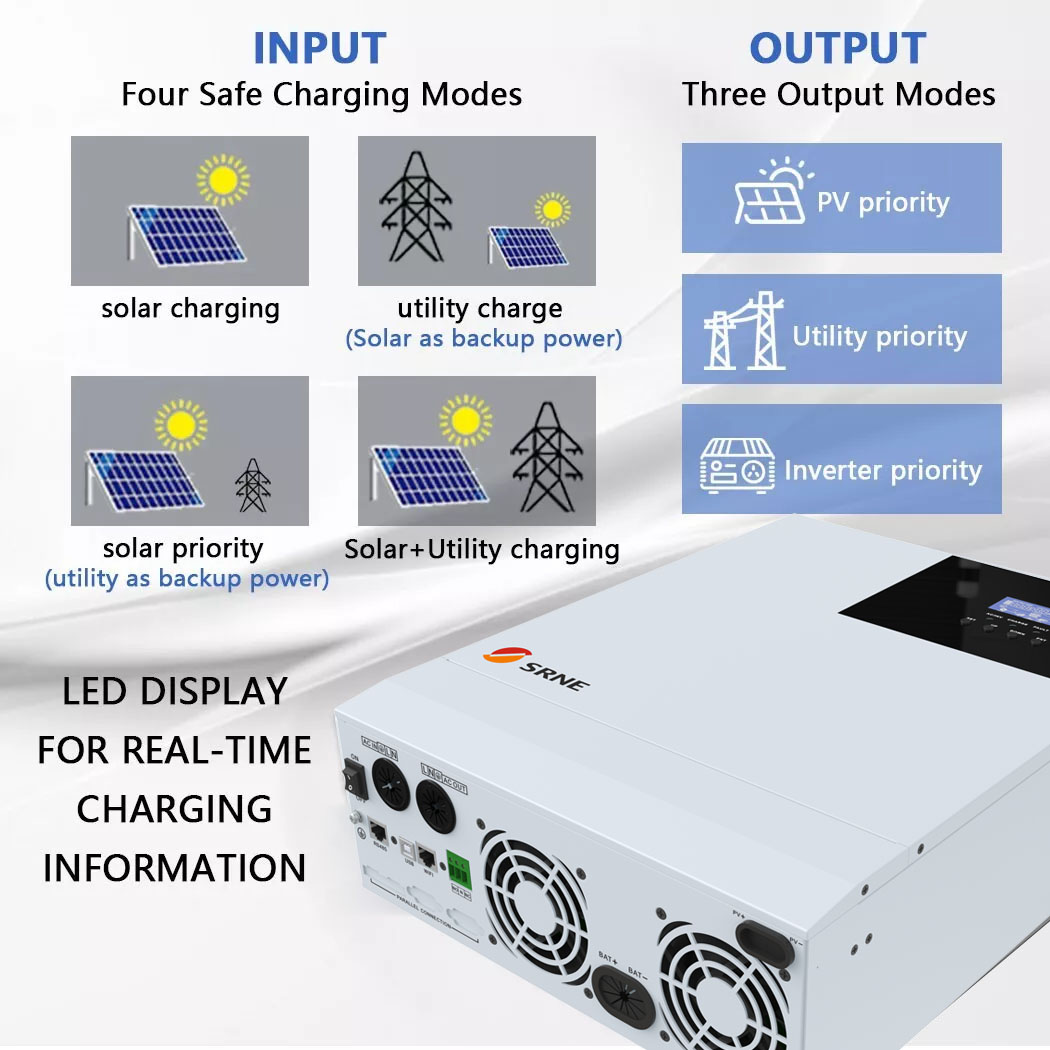

Multiple output modes available, supports Mixed load function.
when not connected to the battery, the photovoltaic and utility can supply power to the load at the same time (no battery must be connected to the utility), when the battery is full, it can also enter the mixed load mode, which can make full use of the energy of the photovoltaic.

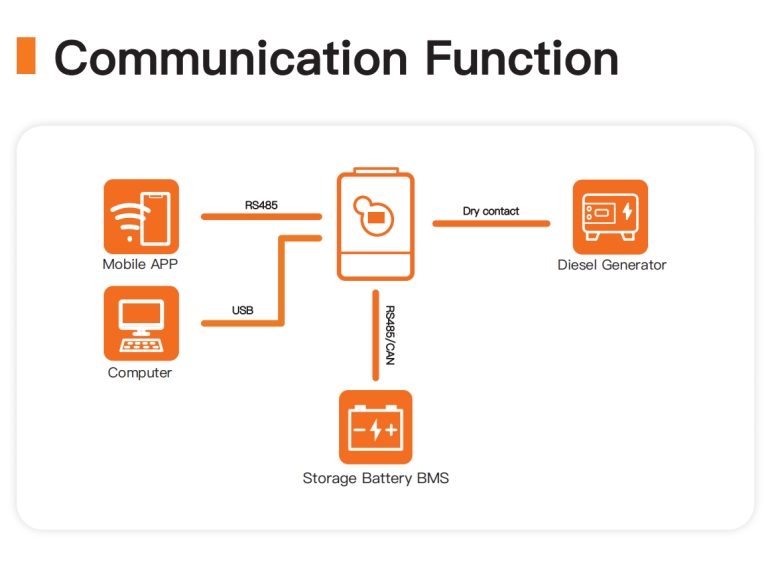

Storage Battery BMS
The inverter supports communication with the BMS (battery management system) of the storage battery via RS485 or CAN protocol (some models)After the BMS communication is completed, the inverter can collect the battery parameters to achieve more accurate and efficient control of charging and discharging, which is conducive to maintaining the life of the battery and also to ensure safety
Related document：
-
File size: 3.4MB
-
File size: 5.1MB
Q1: What kind of certificates you have for your solar controllers?
A1: Our products are fully certified, with CE, RoHS, and other certifications.
Q2: Can I have a sample order for your products?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q3:What about the lead time?
Sample:1-2 working days
Order: within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample.
Q4: How to deal with the faulty?
Firstly, all our products are produced in a strict quality control system, have gone through 28 functional tests, at least three comprehensive tests, and the defective rate is less than 0.2%.
Secondly, if something goes wrong with the products, please send back photos or videos of defects, and our engineers will analyze which part has a product.
During the guarantee period, we will send replacements with new orders for small quantities.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
If over the guarantee period, you can buy the replacements from us.
