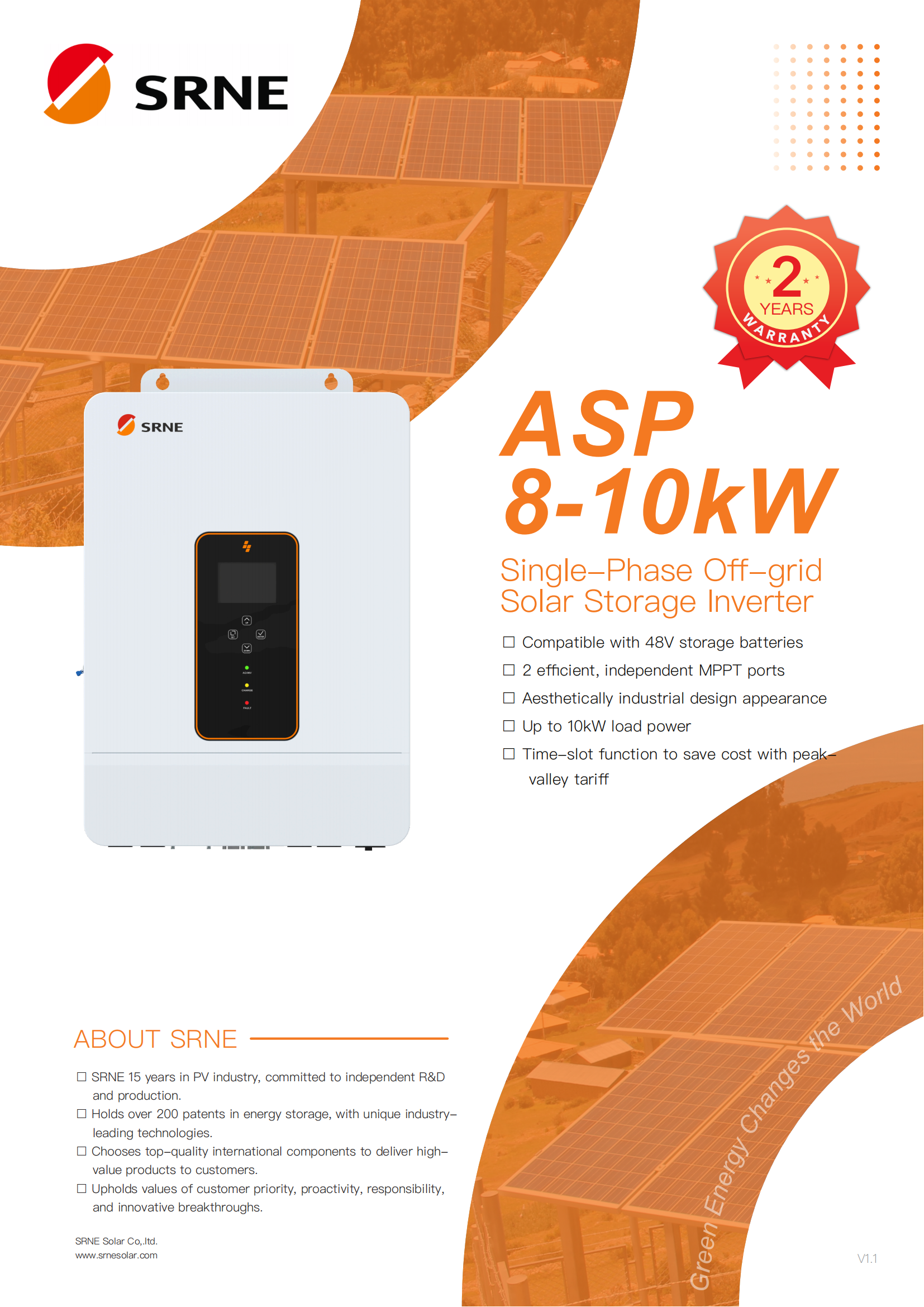

SRNE ASP4880S180-H Parallel Hybrid 8-12kw Inverter
No. Of MPPT: 2 Max. PV Array Power: 5,500W+5,500W Bypass Overload Current: 63A MPPT Tracking Efficiency: 99.9%
Product Details

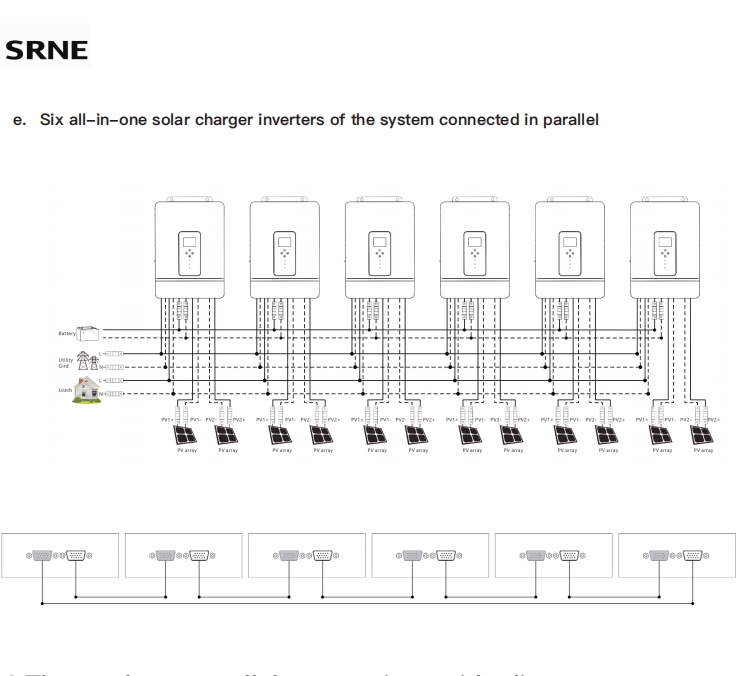

Support Up to 6 Units in Parallel Connection
Our 10KW solar inverter charger offers the flexibility of connecting up to 6 units at the same time. This configuration allows for a combined power output of up to 60000W, making it suitable for a wide range of applications including residential, office, commercial, and industrial use. Its reliable and efficient design, along with its easy expandability, makes it an excellent choice for large-scale solar systems.
Various application scenarios
4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
Save electricity costs - Photovoltaic priority mode
Power emergency backup - Mains power priority mode
Application in areas without electricity - Battery priority mode
Peak Shaving
& Valley Filling
The ASP series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs so that the utility power and PV energy can be used rationally.
When mains electricity is expensive, the battery inverter is used to carry the load, when the mains electricity is cheap, the mains electricity is used to carry the load and charge, which can help customers to save electricity costs to the greatest extent.
Related document：
-
File size: 4.5MB
-
File size: 17.1MB
Q1: What kind of certificates you have for your solar controllers?
A1: Our products are fully certified, with CE, RoHS, and other certifications.
Q2: Can I have a sample order for your products?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q3:What about the lead time?
Sample:1-2 working days
Order: within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample.
Q4: How to deal with the faulty?
Firstly, all our products are produced in a strict quality control system, have gone through 28 functional tests, at least three comprehensive tests, and the defective rate is less than 0.2%.
Secondly, if something goes wrong with the products, please send back photos or videos of defects, and our engineers will analyze which part has a product.
During the guarantee period, we will send replacements with new orders for small quantities.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
If over the guarantee period, you can buy the replacements from us.
Keyword：
Category：
ONLINE MESSAGE
* Note: Please be sure to fill in the information accurately and keep the communication open, we will contact you as soon as possible
DC/DC Controller (Charge and Discharge)- SRNE shiner 10A-60A
Max.Voltage of Open Circuit: 60/100Vdc Rated Battery Voltage: 12/24/36/48Vdc Rated Charging Current:10A-60A Rated Load Current: 10A /20A
SRNE HESP48100U200-H 8-12KW Hybrid Inverter IP65 Split-phase
Rated Output Power：12,000W Max. Solar Charging Current：200A Max. Input Power：6,600W+6,600W Parallel Capacity：1～6 Units
SRNE HF2430S60-100 24v 3kw Low Voltage Energy Storage Inverter
Rated Output Power: 3000w Max.Peak Power: 6000VA Rated Output Voltage: 230Vdc Rated Battery Voltage: 24v
SRNE ASP4880S180-H Parallel Hybrid 8-12kw Inverter
No. Of MPPT: 2 Max. PV Array Power: 5,500W+5,500W Bypass Overload Current: 63A MPPT Tracking Efficiency: 99.9%
