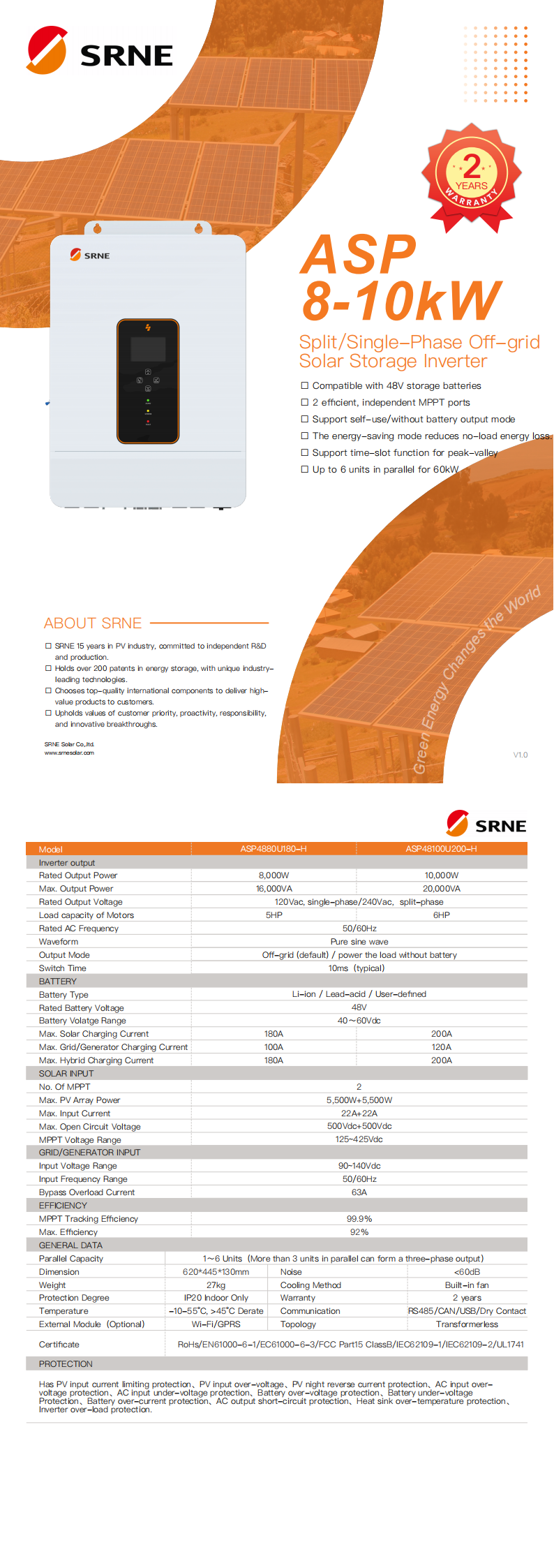

SRNE ASP48100U200-H 8-10kw Hybird Inverter 110V/208V/240Vac Split Phase Solar Inverter
□ 2 efficient, independent MPPT ports □ Support self-use/without battery output mode □ The energy-saving mode reduces no-load energy loss. □ Support time-slot function for peak-valley □ Up to 6 units in parallel for 60kW
Product Details
Support split-phase and single-phase pure sine wave output
The US model supports 120V/240V and 110V/220V split phase output. Single or Split phase output can be selected. And it supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.

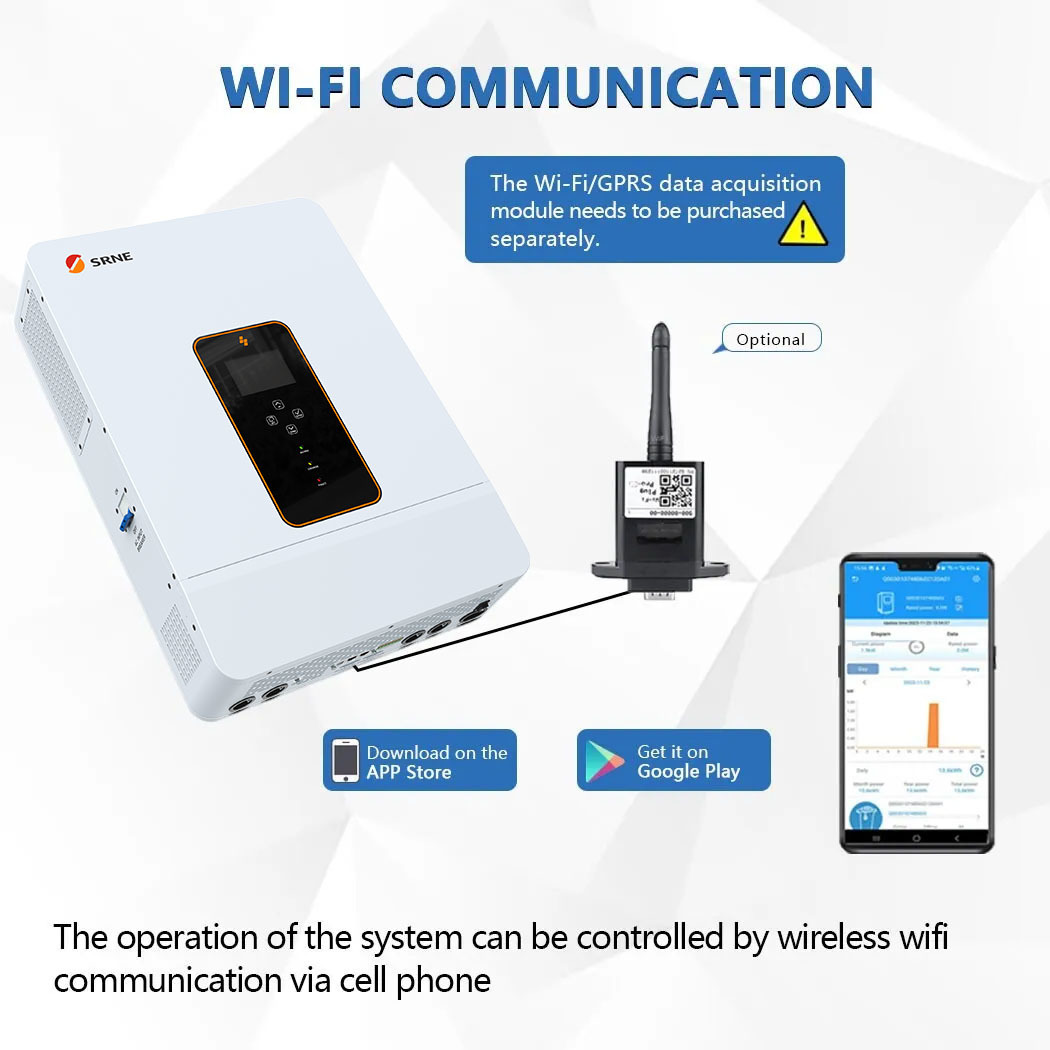

Smart interconnection, remote monitoring
With the combination of a Wi-Fi module and SRNE APP, users can enjoy a convenient and user-friendly experience in monitoring and controlling their inverters. The APP is compatible with both iOS and Android devices.
The APP allows users to access real-time data from their inverters easily. They can conveniently check the device's performance and monitor its daily data. Moreover, the app provides the functionality to send commands and operate the inverter remotely.
Peak Shaving & Valley Filling
The ASF series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs so that the utility power and PV energy can be used rationally.
When mains electricity is expensive, the battery inverter is used to carry the load, when the mains electricity is cheap, the mains electricity is used to carry the load and charge, which can help customers save electricity costs to the greatest extent.
Various application scenarios

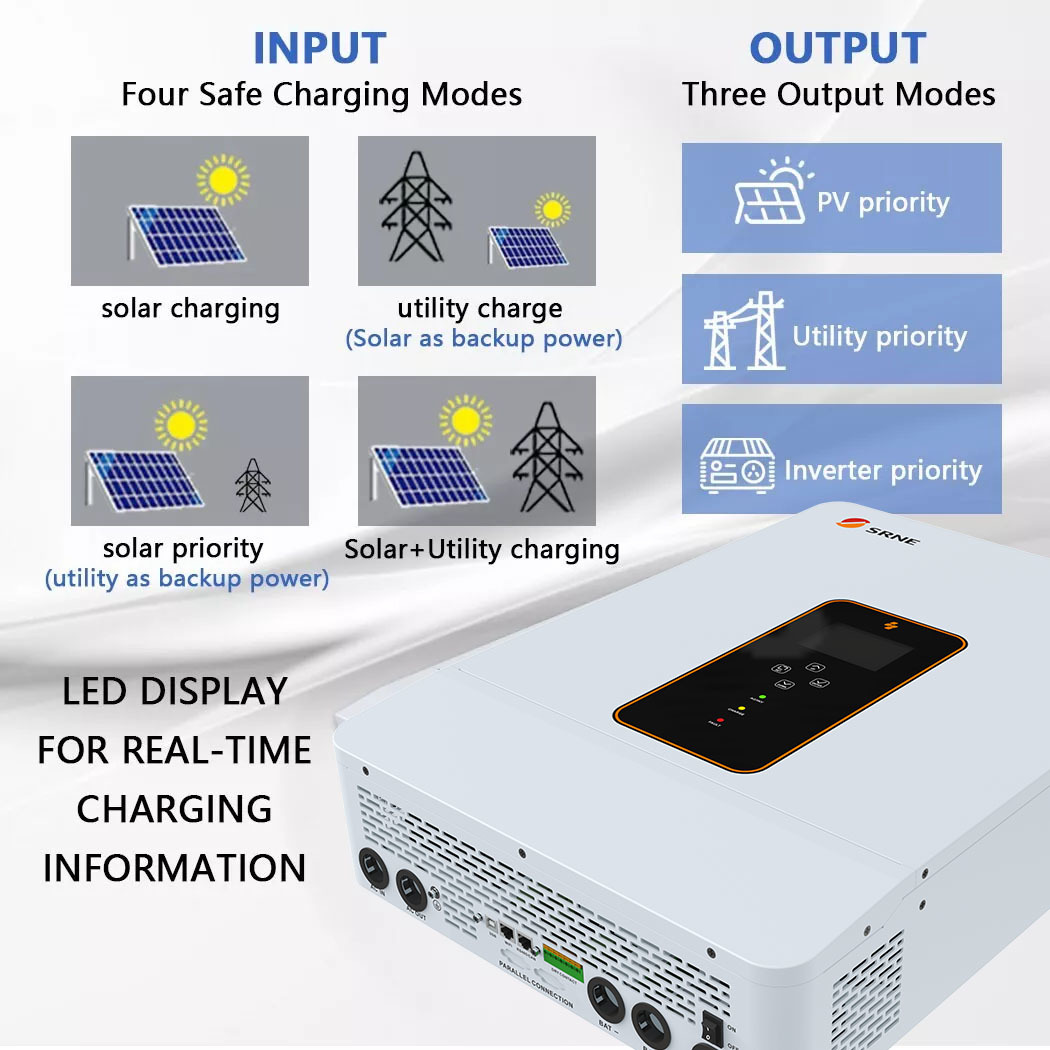

4 charging modes are available:
solar only, mains priority, solar priority, and mixed mains/PV charging.
Save electricity costs - Photovoltaic priority mode
Power emergency backup - Mains power priority mode
Application in areas without electricity - Battery priority mode
Related document：
-
File size: 4.0MB
-
File size: 4.5MB
Product
What warranty do you offer?
Each product comes with the SRNE's warranty and can range from 1 year up to 10 years depending on the specific product you are interested in. For example, IP20 inverter has a 2-year warranty, IP65 battery has a 10-year warranty and accessories have 1-year warranty.
Can I return products?
If the product is faulty and is under warranty, we will replace spare parts or whole machine for you under SRNE terms and conditions. If you are adding to an existing system configuration, we need to know more information to ensure that you are ordering the right parts.
IS IT OK TO PRINT MY LOGO ON THE PRODUCT?
Yes. we support adding your logo to the product—sticker logo MOQ 50 units.
Where can I view my sales receipt?
You will receive an order confirmation email from us as soon as you place an order. Once we receive your payment, we will send you an invoice via the email address you provided during registration.
Shipping
WHEN do you ship goods and how long does it take to arrive?
Regular products are usually shipped within three working days. Customized product shipment time varies according to product model and requirements.
We offer shipping by sea, air, and courier services. Shipping times vary depending on the mode of transportation:
Sea freight: 20-30 days
Air freight: 7-10 days
Express: 7-10 days
Please note that these are estimated times and may vary depending on location and other logistical factors.
How do you handle logistics and customs clearance?
We work with experienced logistics partners to ensure smooth deliveries. We can also assist you with customs clearance and tax payment in your country.
If you have a freight forwarder in China, we can also deliver the goods through your freight forwarder.
Payment
What are your payment terms?
Common payment methods are T/T (bank wire transfer), credit card, etc.
Our standard payment terms are 30% deposit and 70% balance before shipment.
Payment terms may vary depending on the order. Please get in touch with our sales staff for details.
Company
How can I be sure you are an honest company and my payment will not be cheated?
1. You can find all the information about our company, including our business license, certificates, etc. on the "About Us" page.
2. All our products have corresponding certificates, such as RoHS, cETL UL1741, G99, etc.
3. We have an officially certified store in Alibaba（https://boricksolar.en.alibaba.com）, you can also check what customers from different countries say about us in Alibaba.
If we were not reliable, we would not have maintained a 4.9 store rating for many years and we would be out of market for long time
Keyword：
solar inverter,dual MPPT ,off-grid
