5KW Solar Power Home Inverter HSI5500P
• Rated Output Power:5000W • Parallel Capacity:1-6 units（single/three phase） • Max.Voltage of Open Circuit:500Vdc • Dual LFP battery activation method: PV&mains
Product Details
1. It adopts full-digital double closed-loop control, combined with advanced SPWM technology to output pure sine waves.

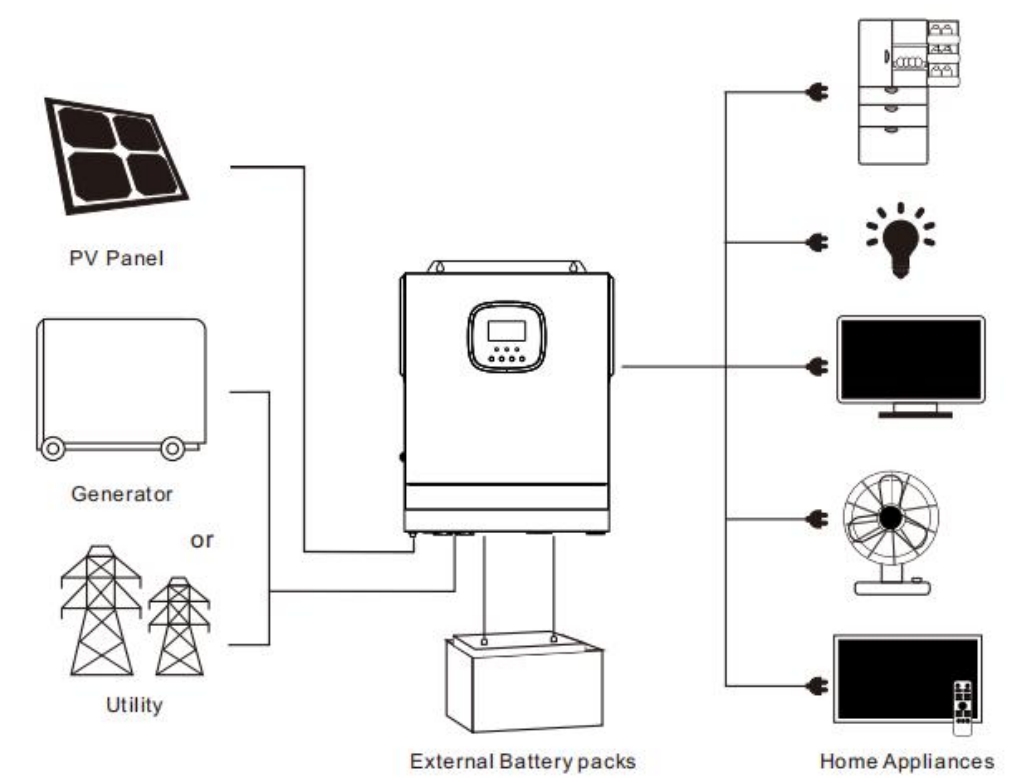

2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. Wide MPPT voltage range: 120-450V.
6. Individually on load capacity.
7. It comes with double lithium battery activation modes: mains and PV and supports lead-acid battery and lithium battery access.
8. Comes with a LCD display and 3 LED indicators that can clearly indicate the status and data.
9. Rocker switch for AC output control.
Related document：
-
File size: 353.5KB
-
File size: 2.2MB
Q1:What kind of certificates you have for your solar controllers?
A1:Our products are fully certified,with CE,RoHS,and other certifications.
Q2:Can I have a sample order for your products?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3:What about the lead time?
Sample:1-2 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample.
Q4:How to deal with the faulty?
Firstly,All our products are produced in a strict quality control system,have gone through 28 functional tests,at least three comprehensive tests,and the defective rate is less than 0.2%.
Secondly,if something goes wrong with the products.please send back photos or videos of defectives,our engineers will analyze which part has a products.
During the guarantee period,we will send replacements with new orders for small quantities.
For defective batch products,we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
If over the guarantee period,you can buy the replacements from us.
